Item Description

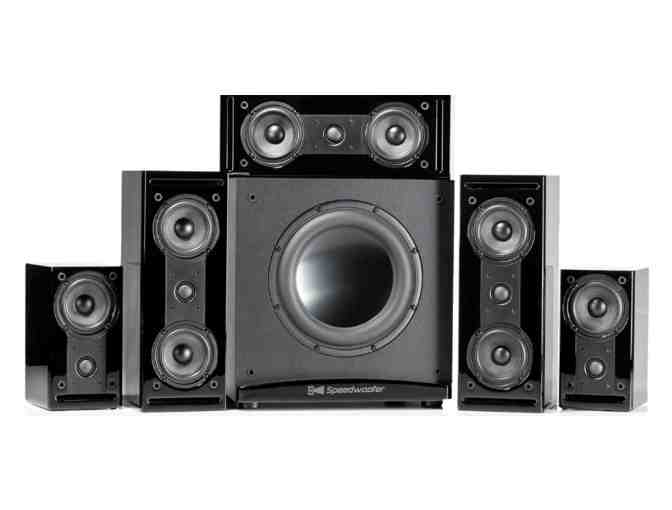

Featuring CG23's for front L,C,R channels, this NEW 5.1 system offers standard-shattering performance like the CG3 5.1; but with a sound image projected slightly deeper into the room. This is perfect for larger rooms or those who want the exceptional clarity, remarkable detail, and spacious imaging of the CG3's, but prefer being a bit closer to the soundstage. This 5.1 achieves sound so awe-inspiring, you may need to pinch yourself to make sure you're not dreaming.

* RSL system packages are eligible for RSL’s 30 day trial period. A $25 return fee will apply to each Speedwoofer included in the return. Please note that Speedwoofers cannot be withheld from returns.

Included:

RSL CG3 High Performance Bookshelf Speaker (2 included)
RSL CG23 High Performance Bookshelf Speaker (3 included)
Speedwoofer 10S MKII Subwoofer (1 included)

-Requires AV Receiver
-Full setup support available
-Includes full manufacturer warranty

SPECIFICATIONS

RSL CG3 Speaker (2 included)

Woofer: 4” with Ferrite Magnet, Kevlar Cone
Tweeter: 1” Silk Dome, Neodymium Magnet
Frequency Response: 100-20,000 Hz ± 3db
Recommended Impedance setting for amplifiers: 6 or 8 ohms (whichever is higher)
Sensitivity: 86 db SPL @ 1 watt, 1 meter distance
Recommended Power: 25-125 watts
Crossover Frequency: 2,500 Hz
Crossover Slope: 12 db/octave
Crossover Parts: Air core coil, Polypropylene capacitors, Gold Plated binding posts
Tuning Method: Compression Guide™
System Resonance: 87 Hz
Weight: 6 lbs.
Dimensions: H: 9 1/2” W: 5 1/16” D: 6 3/8 “(Without grille 6”)


RSL CG23 Speaker (3 included)

Woofer: 4” with Ferrite Magnet, Kevlar Cone
Tweeter: 1” Silk Dome, Neo Magnet
Frequency Response: 85-20,000 Hz ± 3db
Recommended Impedance setting for amplifiers: 6 or 8 ohms (whichever is higher)
Sensitivity: 88 db SPL @ 1 watt, 1 meter distance
Recommended Power: 25-125 watts
Crossover Frequency: 2,500 Hz
Crossover Slope: 12 db/octave
Crossover Parts: Air core coil, Polypropylene capacitors, Gold Plated binding posts
Tuning Method: Compression Guide™
System Resonance: 75 Hz
Weight: 10 lbs.
Dimensions: H: 6” W: 16” D: 6 3/8 “(Without grille 6 ”)

Speedwoofer 10S MKII (1 included)

Frequency Response:MKII/LFE mode (anechoic): 22-200 Hz ± 3db
MKII/LFE mode (+ room gain): ~18-200 Hz ± 3db (varies with room size)
Woofer:10” 400+ watt rated woofer
4 ohm nominal Impedance
Die-cast aluminum frame
High-Excursion FEA optimized design motor structure1008 low-carbon steel motor parts (T-yoke and field plate)
Premium grade dual-stacked ceramic magnets
Ultra-high Temp (200° C), Multi-layer Copper Voice Coil
High yield fatigue-resistant Nomex™ spider
Kevlar™ reinforced paper cone with full anodized aluminum dust cap
High durability NBR surround
High duty cycle flexible tinsel lead wire with strain relief feature
Enclosure:Rear-vented Compression Guide™ tuning
Integrated cross-bracing reinforcement
¾” thick MDF woofer panels
Laminated 1” front woofer baffle
Removable cloth grille
XDR Series Amplifier:400 watts RMS < 1% THD
1020 watts peak
Selectable dual-mode DSP – LFE/Music
Integrated double-precision 56-bit, 50 MIPS DSP processor
Intelligent class D topology, >85% Efficiency
Signal to noise ratio: >85dB
Auto-ON Threshold: 3mV
Auto-OFF: 20 minutes (no signal)
Stand-by power consumption: ~0.5 watts
Power Input: Selectable 110/230VAC 50-60Hz switch
Low EMI design, CE & C-Tick compliant
Line level RCA inputs and RCA pass-through signal outputs
Speaker level binding post inputs
Chassis ground screw
Wireless Pairing Button: Integrated 2.4GHz wireless receiver compatible with RSL AT-3 & AT-4 Transmitters
Crossover Frequency: 40-200 Hz variable
Crossover Slope: 24 db/oct
Phase Control: 0 to 180 continuously variable
Power Input: 115V, 60Hz, 230V, 50/60Hz AC
Feet: Includes 4 rubber feet
Dimensions with Feet: H: 15 1/2” W: 15” D: 15 3/4”
Weight: 40.6 lbs
Shipping Dimensions: H: 20” W: 20” D:20”
Shipped Weight: 48.6 lbs
Fuse: 115V (T5.0AL/250V) – 230V (T2.5.0AL/250V)

RSL Speakers LLC
5304 Derry Ave. Ste N.
Agoura Hills, CA 91301

800-905-5485

https://rslspeakers.com/
